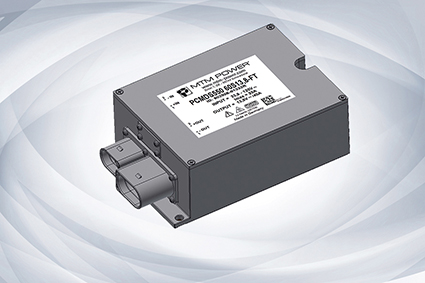

PCMDS550 60S13,8-FT
Special Features
- Wide Input Range
- Galvanically Separated
- Transient Protected
- Short Circuit Protected
| Type of Power Supply | DC/DC |
| Power | 552,0 W |
| DC Input nominal | 60 V |
| DC Input | 33,6 - 125 V |
| Output Voltage U1 | 13,8 V |
| Output Current U1 | 40 A |
| Efficiency | ≥89 % |
| Mounting Type |
Chassis Mounting |
| Dimensions | 170,0 x 115,0 x 60,0 mm |
| Weight | 2800 g |
| Datasheet | Download |
